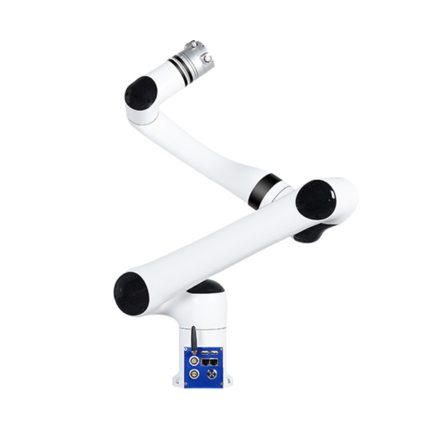

RML63-6F
$429.00
Short Description

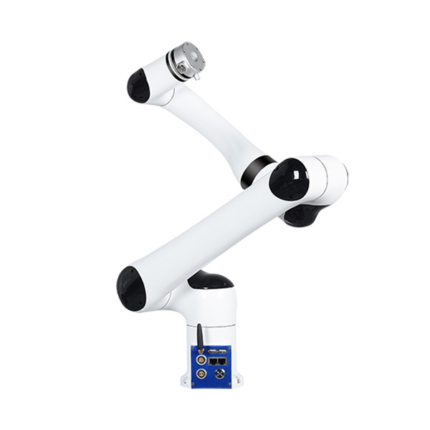

The RML63-B, a basic version of the 6-dof long arm span robotic arm, is self-developed and produced by RealMan. The controller is integrated at the bottom of the robotic arm, lightweight and flexible. The modular joint design of the robotic arm enables sufficient workspace, meeting the requirements of more complex application scenarios. Maximum power consumption ≤200W, comprehensive power consumption ≤100W.
RML Series Ultra-lightweight Lengthening Robotic Arm
The RML63-B, a basic version of the 6-dof long arm span robotic arm, is self-developed and produced by RealMan. The controller is integrated at the bottom of the robotic arm, lightweight and flexible. The modular joint design of the robotic arm enables sufficient workspace, meeting the requirements of more complex application scenarios. Maximum power consumption ≤200W, comprehensive power consumption ≤100W.
Reinforcement Binding Robot
Suction Cup Loading and Unloading
Coffee Robot
Transformer Painting
Product Parameters :
| Product size | 297*126*210mm (when it is powered on ) |
| Product weight | About 706g |
| Material | Hard aluminum alloy |
| Camera resolution | 320*240 |
| DOF | 8DOF + 3DOF |
| Power supply | 7.4V 1500mAh 5C Lithium battery |
| Hardware | ESP32 robot controller |
| Software | app + action editing PC software |
| Servo | HPS-0618SG coreless servos; LFD-01M anti-blocking servos; |
| Control method | PC control/ app control |
| Package size | 48*20*17cm |
| Package weight | About 1.9kg |
| Degree of freedom |
6 |
|---|---|
| Payload |
3kg |
| Peak payload |
10.1kg |
| Body weight |
10kg |
| Repeatability |
±0.05mm |
| Working radius |
928.5mm |
| Power supply voltage |
DC24V |
| Power consumption |
Maximum power consumption 200W, comprehensive power consumption 100W |
| Protection level |
IP54(robotic arm body) |
| Material |
Aluminum alloy |
| Controller |
Integrated |
| Communication mode |
WIFI/network port/Bluetooth/USB serial port/RS485 |
| Control mode |
Drag and drop teaching/Teaching pendant/API/JSON |
| Joint motion range |
J1 ±178°、J2 ±178°、J3 +145°~-178°、J4 ±178°、J5 ±178°、J6 ±360° |
| Joint maximum speed |
J1-J2 180°/s、J3-J6 225°/s |
