RM75-B
$429.00
Short Description
Consequat a scelerisque suspendisse vel et eget eu vitae adipiscing nibh scelerisque semper cum adipiscing facilisis adipiscing est accumsan lorem vestibulum. Aliquet mus a aptent ullam corper metus accumsan. Habitasse a purus nec ipsum a urna ac ullamcorper varius metus blandit posuere.

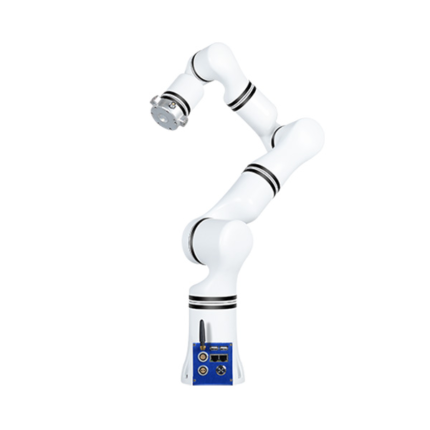

RM Series Ultra-lightweight Humanoid Robotic Arm
The RM series ultra-lightweight humanoid robotic arm is a 6-DOF and 7-DOF robotic arm independently developed and produced by RealMan. This series comprises five models: the RM65/75-B basic versions and the RM65/75-6F six-axis force versions. The robotic arm, including its integrated controller, weighs a total of 7.2/7.8 KG, with a payload capacity of 5 KG and a working radius ranging from 610 to 638.5 mm. Its ultra-compact size, combined with a multi-platform interface system, renders it highly suitable for a diverse array of complex application scenarios. The robotic arm is equipped with a built-in safety module that stops operation upon contact, enabling safe human-machine collaboration, streamlining drag-and-drop teaching, and enhancing the user-friendliness of human-robot interaction.
Reinforcement Binding Robot
Suction Cup Loading and Unloading
Coffee Robot
Transformer Painting
Product Parameters :
| Product size | 297*126*210mm (when it is powered on ) |
| Product weight | About 706g |
| Material | Hard aluminum alloy |
| Camera resolution | 320*240 |
| DOF | 8DOF + 3DOF |
| Power supply | 7.4V 1500mAh 5C Lithium battery |
| Hardware | ESP32 robot controller |
| Software | app + action editing PC software |
| Servo | HPS-0618SG coreless servos; LFD-01M anti-blocking servos; |
| Control method | PC control/ app control |
| Package size | 48*20*17cm |
| Package weight | About 1.9kg |
| Degree of freedom |
7 |
|---|---|
| Payload |
5kg |
| Peak payload |
9kg |
| Body weight |
7.8kg |
| Repeatability |
±0.05mm |
| Working radius |
610mm |
| Power supply voltage |
DC24V |
| Power consumption |
Maximum power consumption 200W, comprehensive power consumption 100W |
| Protection level |
IP54(robotic arm body) |
| Material |
Aluminum alloy |
| Controller |
Integrated |
| Communication mode |
WIFI/network port/Bluetooth/USB serial port/RS485 |
| Control mode |
Drag and drop teaching/Teaching pendant/API/JSON |
| Joint motion range |
J1 ±178°、J2 ±130°、J3 ±135°、J4 ±178°、J5 ±128°、J6 ±360° |
| Joint maximum speed |
J1-J2 180°/s、J3-J6 225°/s |
