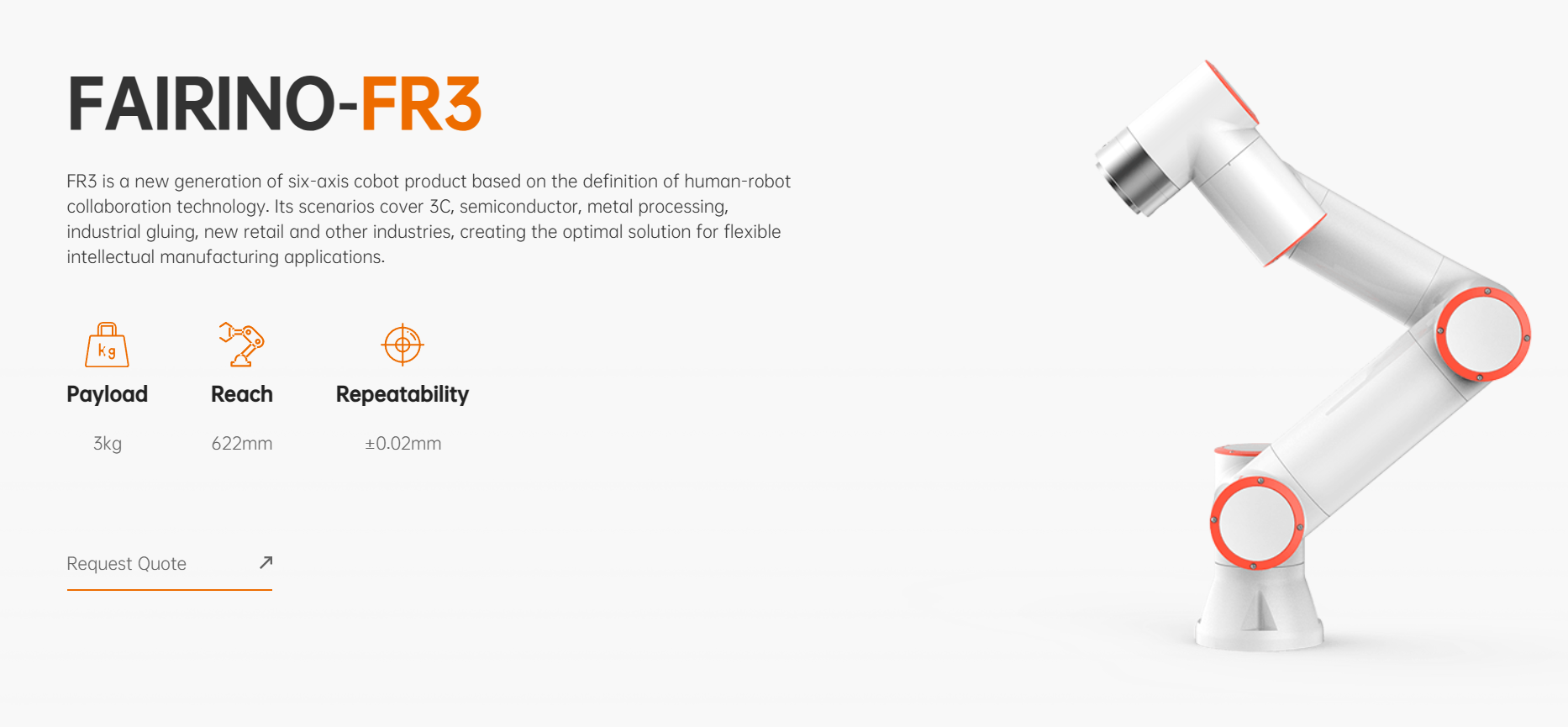

FAIRINO-FR3
$429.00
Short Description
FR3 is a new generation of six-axis cobot product based on the definition of human-robot collaboration technology. Its scenarios cover 3C, semiconductor, metal processing, industrial gluing, new retail and other industries, creating the optimal solution for flexible intellectual manufacturing applications.
Buy it with:
Excellent Performance Efficiency First
The system adopts the leading EtherCAT bus architecture, with strong real-time and high stability, which comprehensively improves the production performance in various scenarios.
Awesome Security Comprehensive Protection
The core components are self-developed and self-produced, with patented design scheme, modular design scheme, and full closed-loop joint torque feedback to ensure safety and efficiency.
Flexible Deployment No Entry Threshold
Adopt graphical programming, smooth drag teaching function, multi-axis linkage, easy integration.
Efficient Protection Stable & Reliable
IP66 protection, perfectly adapted to all types of application scenarios, safer and more reliable.
Complete Ecosystem Convenient Integration
Support ROS secondary development, self-developed open platform, to meet more diverse needs, support a variety of communication protocols. Provide convenience for robot integrators.
Welding
Pick & Place
Rehabilitation
Precision Dispensing
Automotive
Photography
Welding
CNC
3C
Catering
Medical
FAIRINO-FR3
| Weight | ≈15kg (Weight without wire) |
| Payload | 3kg (Max:5kg) |
| Degrees of freedom | 6 |
| Reach | 622mm |
| Pose repeatability per ISO 9283 | ±0.02mm |
| Footprint | 128mm |
| Typical TCP speed | 1m/s |
| Tool I/O power supply | 24V/1.5A |
| Noise | ＜65db |
| Operating temperature | 0-45℃ |
| Operating humidity | 90%RH (non-condensing) |
| IP classification | IP54 (IP65 Optional) |

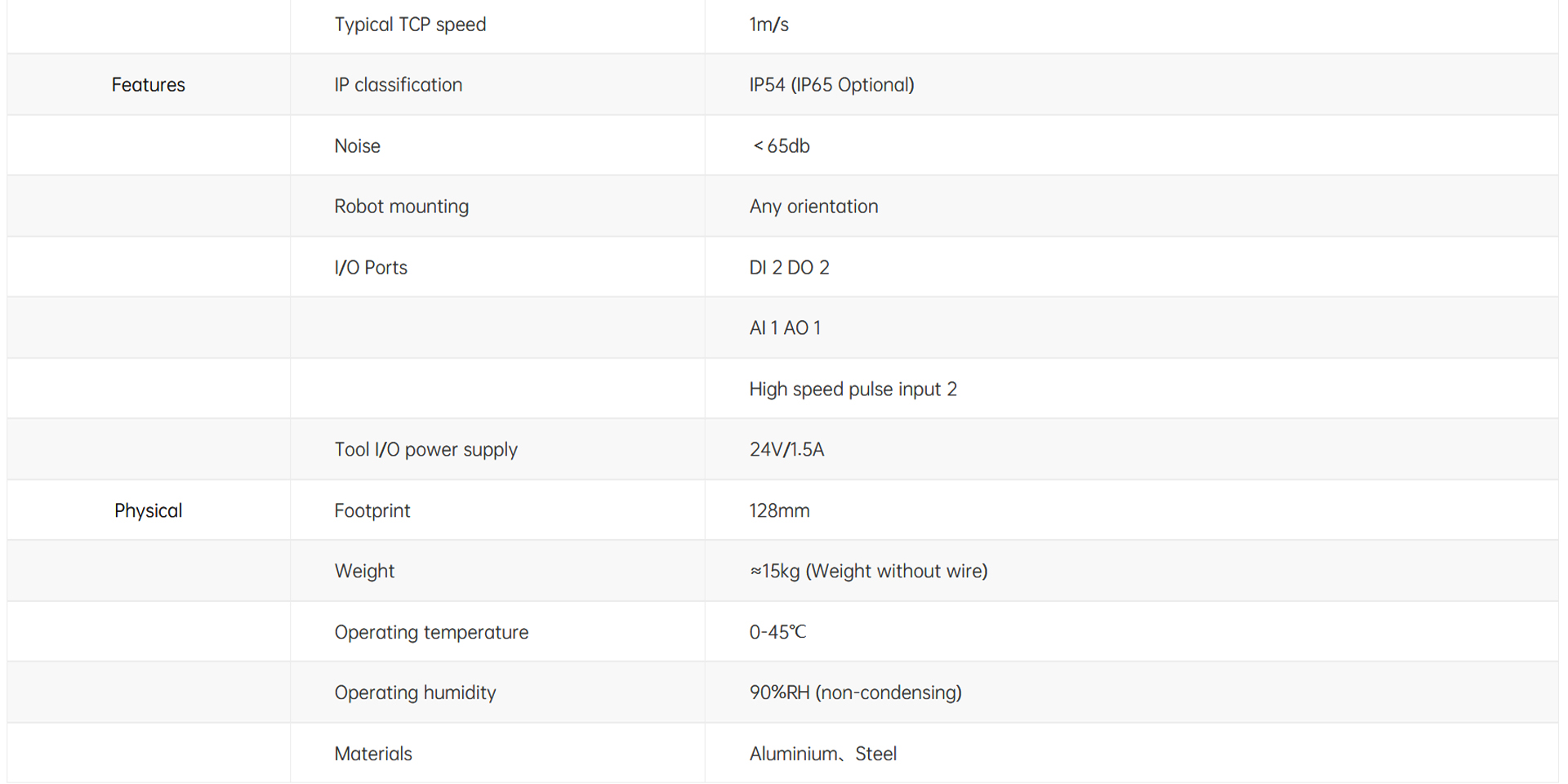

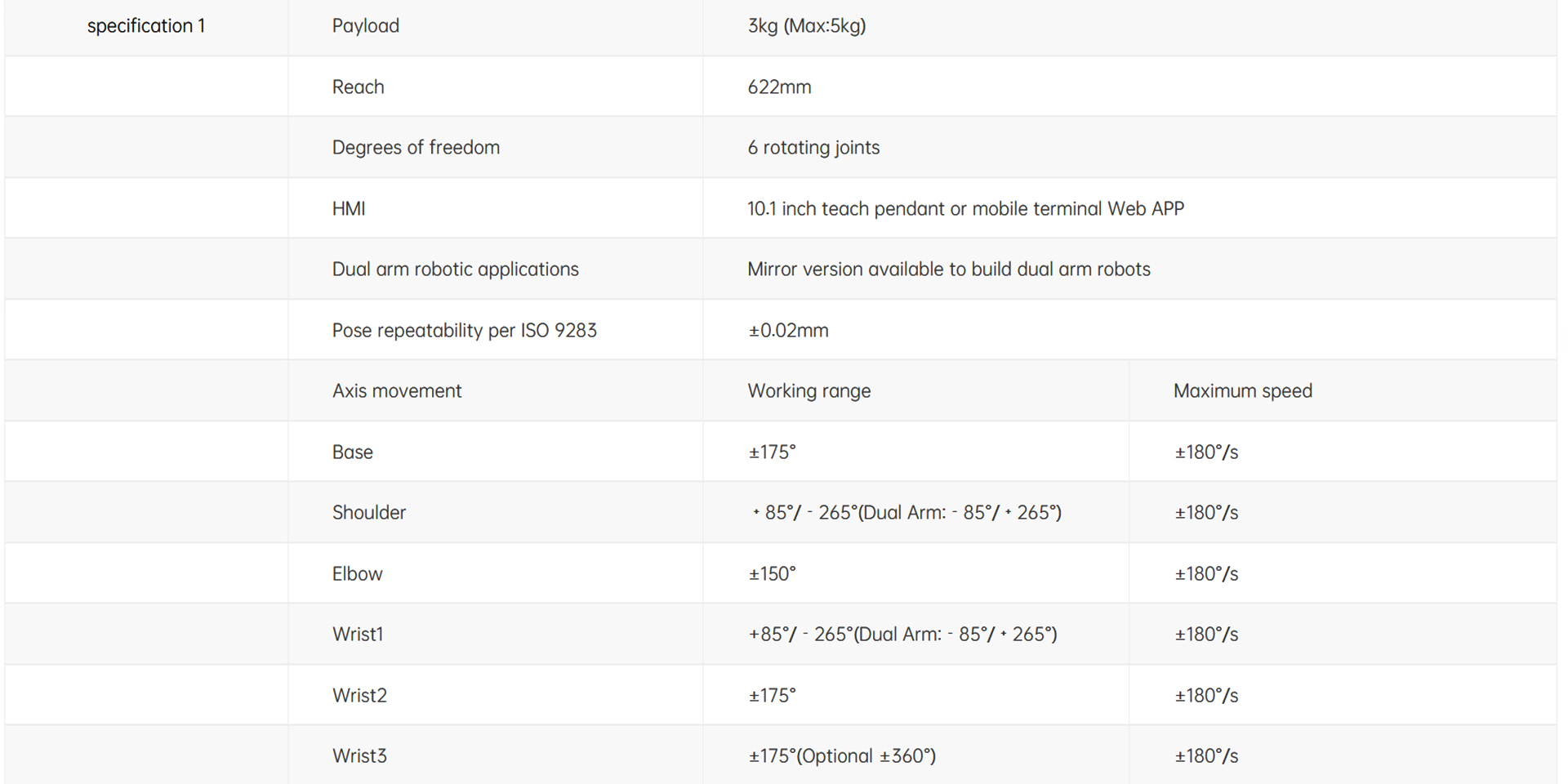

Product Parameters
| Degrees of freedom |
6 |
|---|---|
| Reach |
622mm |
| Footprint |
128mm |
| Weight |
≈15kg (Weight without wire) |
| Payload |
3kg (Max:5kg) |
| Operating temperature |
0-45℃ |
| Operating humidity |
90%RH (non-condensing) |
| HMI |
10.1 inch teach pendant or mobile terminal Web APP |
| Dual arm robotic applications |
Mirror version available to build dual arm robots |
| Pose repeatability per ISO 9283 |
±0.02mm |
| Typical TCP speed |
1m/s |
| IP classification |
IP54 (IP65 Optional) |
| Noise |
＜65db |
| Robot mounting |
Any orientation |
| I/O Ports |
(DI 2 DO 2)、（AI 1 AO 1）、（High speed pulse input 2） |
| Tool I/O power supply |
24V/1.5A |
Order Confirmation
After your payment is processed, one of our engineers will contact you via email to confirm your product specifications and delivery details. Please respond promptly to ensure timely delivery.
Processing Time
Orders ship within 15 business days from the date of order confirmation.
Delivery Method
We provide door-to-door delivery service for all robot products. Our shipping partners will deliver your order directly to your specified address.
Tracking Information
Once your order ships, you will receive a tracking number via email to monitor your delivery status.
