FAIRINO-FR16
$429.00
Short Description

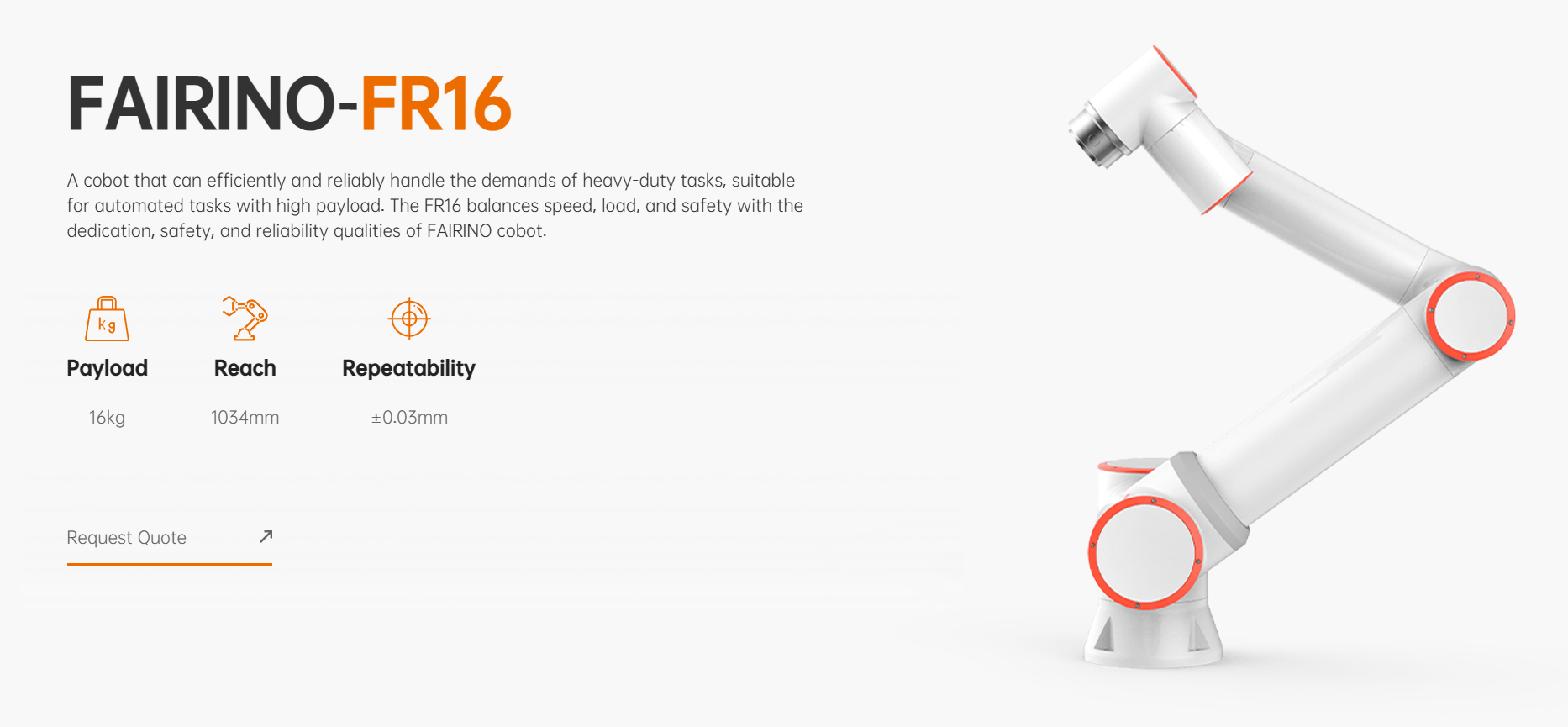

A cobot that can efficiently and reliably handle the demands of heavy-duty tasks, suitable for automated tasks with high payload. The FR16 balances speed, load, and safety with the dedication, safety, and reliability qualities of FAIRINO cobot.
Buy it with:
Excellent Performance Efficiency First
The system adopts the leading EtherCAT bus architecture, with strong real-time and high stability, which comprehensively improves the production performance in various scenarios.
Complete Ecosystem Convenient Integration
Support ROS secondary development, self-developed open platform, to meet more diverse needs, support a variety of communication protocols.Provide convenience for integrators.
Flexible Deployment No Entry Threshold
Adopt graphical programming, smooth drag teaching function, multi-axis linkage, easy integration.
Efficient Protection Stable & Reliable
IP66 protection, perfectly adapted to all types of application scenarios, safer and more reliable.
Complete Ecosystem Convenient Integration
Support ROS secondary development, self-developed open platform, to meet more diverse needs, support a variety of communication protocols. Provide convenience for robot integrators.
Welding
Pick & Place
Rehabilitation
Precision Dispensing
Automotive
Photography
Welding
CNC
3C
Catering
Medical
FAIRINO-FR16
| Weight | ≈40kg |
| Payload | 16kg (Max:20kg) |
| Degrees of freedom | 6 |
| Reach | 1034mm |
| Pose repeatability per ISO 9283 | ±0.03mm |
| Footprint | 190mm |
| Typical TCP speed | 2m/s |
| Tool I/O power supply | 24V/1.5A |
| Noise | ＜70db |
| Operating temperature | 0-45℃ |
| Operating humidity | 90%RH (non-condensing) |
| IP classification | IP54 (IP65 Optional) |

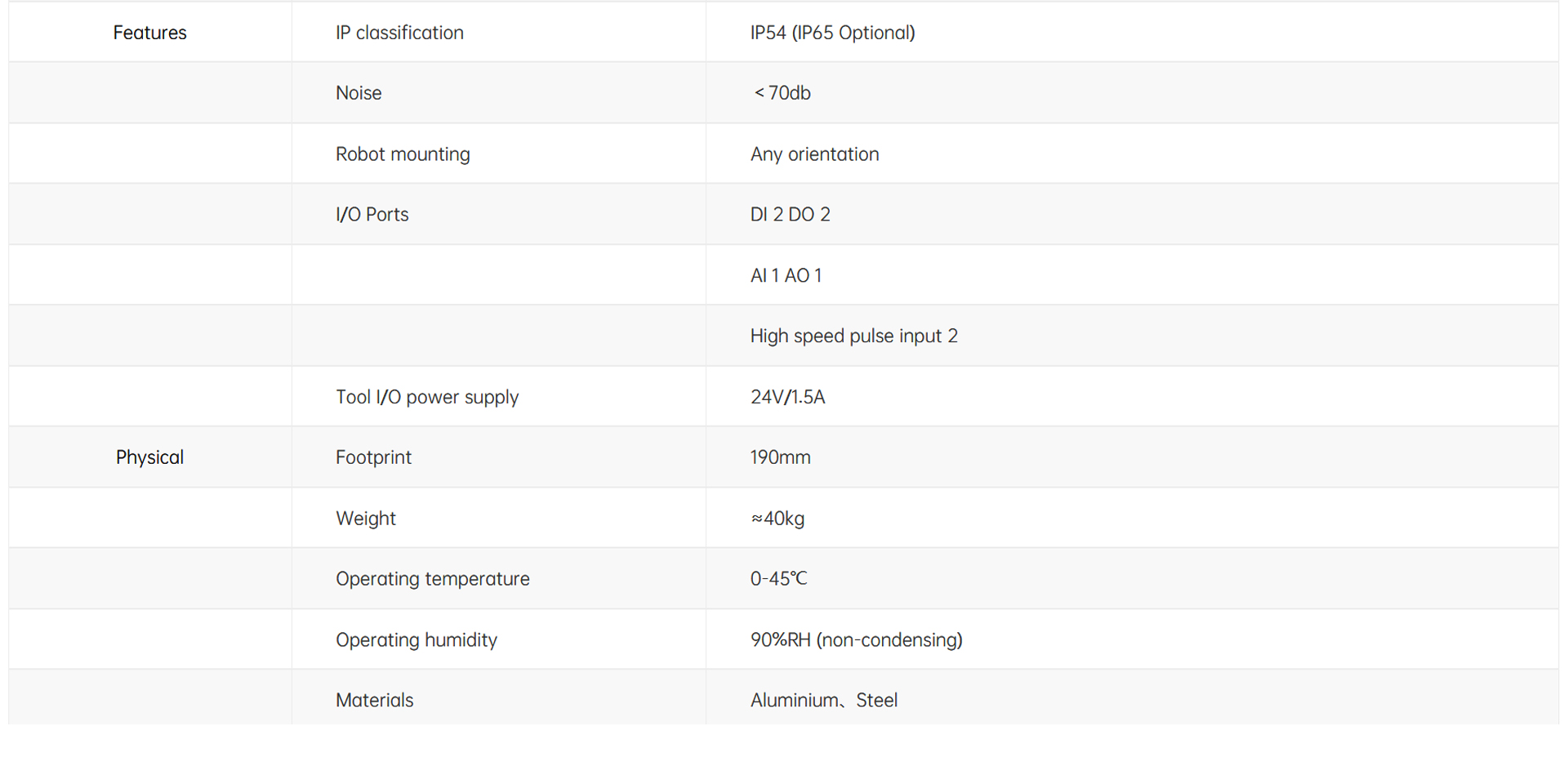

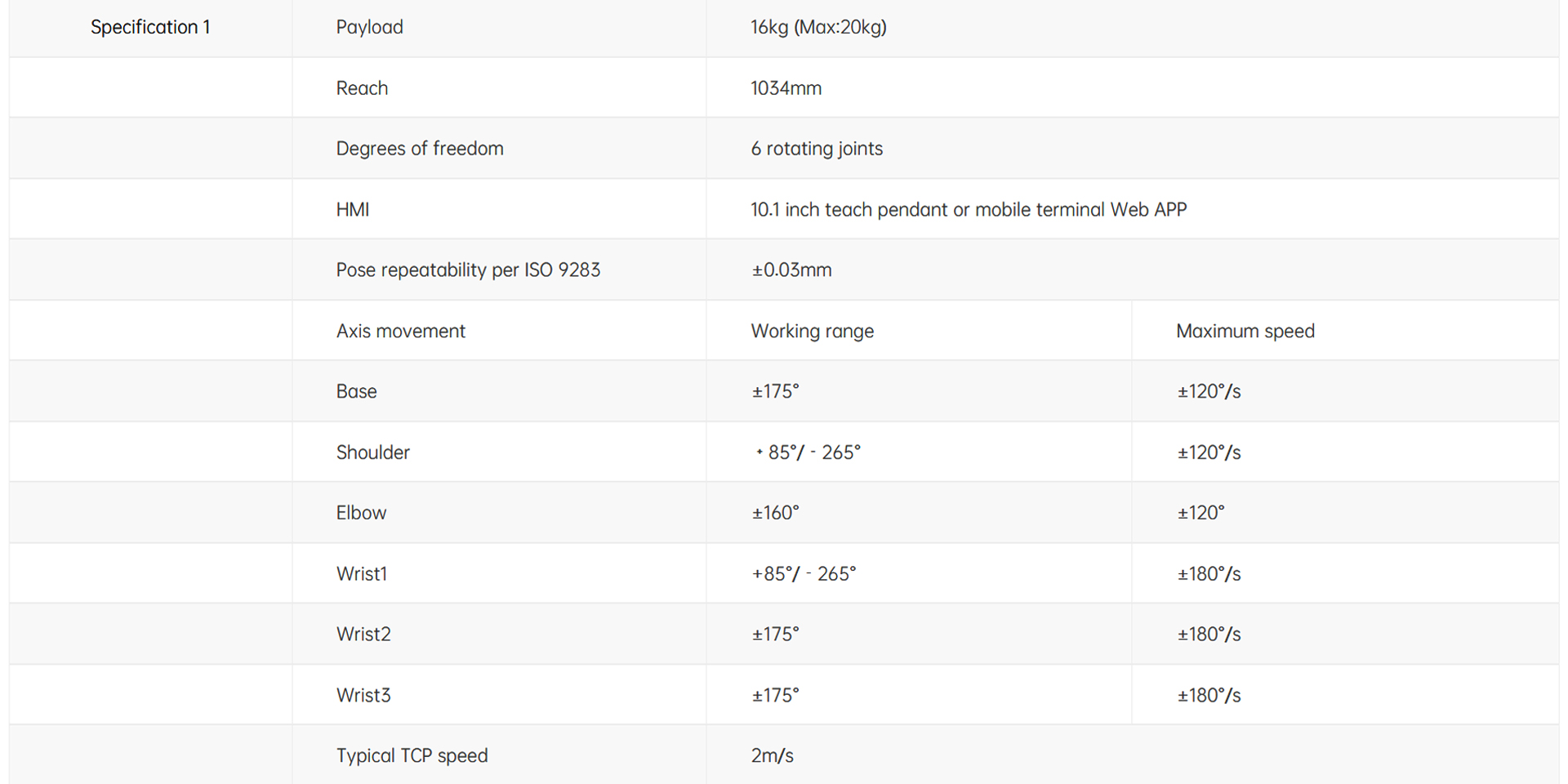

Product Parameters
| Degrees of freedom |
6 |
|---|---|
| Reach |
1034mm |
| Footprint |
190mm |
| Weight |
≈40kg |
| Payload |
16kg (Max:20kg) |
| Operating temperature |
0-45℃ |
| Operating humidity |
90%RH (non-condensing) |
| HMI |
10.1 inch teach pendant or mobile terminal Web APP |
| Dual arm robotic applications |
Mirror version available to build dual arm robots |
| Pose repeatability per ISO 9283 |
±0.03mm |
| Typical TCP speed |
2m/s |
| IP classification |
IP54 (IP65 Optional) |
| Noise |
＜70db |
| Robot mounting |
Any orientation |
| I/O Ports |
(DI 2 DO 2)、（AI 1 AO 1）、（High speed pulse input 2） |
| Tool I/O power supply |
24V/1.5A |
