ECO65-B
$429.00
Short Description

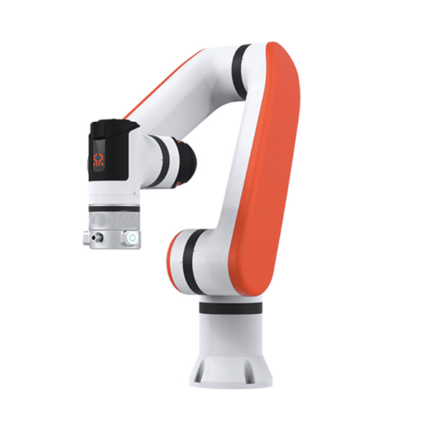

The ECO62 robotic arm is compact in size, capable of handling heavy loads. It exhibits excellent industrial performance, meeting the requirements for collaborative and fast operations in confined spaces. Its lightweight and smooth design ensure inherent safety, while its smooth movements contribute to interaction safety. The ECO62 arm supports applications and customization in various industries such as industrial, medical, commercial services, and education.The ECO65 series is a six-degree-of-freedom robotic arm developed and produced by RealMan. The integrated control cabinet and robotic arm have a total weight of 7.8KG, with an effective payload of 5KG and a peak load capacity of up to 9KG. It has a working radius of 610mm.
ECO Series Ultra-lightweight Cost-effective Robotic Arm
TThe ECO62 robotic arm is compact in size, capable of handling heavy loads. It exhibits excellent industrial performance, meeting the requirements for collaborative and fast operations in confined spaces. Its lightweight and smooth design ensure inherent safety, while its smooth movements contribute to interaction safety. The ECO62 arm supports applications and customization in various industries such as industrial, medical, commercial services, and education.The ECO65 series is a six-degree-of-freedom robotic arm developed and produced by RealMan. The integrated control cabinet and robotic arm have a total weight of 7.8KG, with an effective payload of 5KG and a peak load capacity of up to 9KG. It has a working radius of 610mm.
Medical Industry
Business Services
Industrial Production
3C Industrial
EducationalResearch
Intelligent Inspection
Product Parameters :
| Product size | 297*126*210mm (when it is powered on ) |
| Product weight | About 706g |
| Material | Hard aluminum alloy |
| Camera resolution | 320*240 |
| DOF | 8DOF + 3DOF |
| Power supply | 7.4V 1500mAh 5C Lithium battery |
| Hardware | ESP32 robot controller |
| Software | app + action editing PC software |
| Servo | HPS-0618SG coreless servos; LFD-01M anti-blocking servos; |
| Control method | PC control/ app control |
| Package size | 48*20*17cm |
| Package weight | About 1.9kg |
| Degree of freedom |
6 |
|---|---|
| Payload |
5kg |
| Body weight |
7.8kg |
| Repeatability |
±0.05mm |
| Working radius |
610mm |
| Power supply voltage |
DC20～30V，DC24V |
| Power consumption |
Max Power Consumption 200W Comprehensive power consumption 100W |
| IP Grade |
IP54 (robotic arm body) |
| Material |
Aluminum alloy +ABS |
| Controller |
Integrated |
| Communication mode |
WIFI/network interface/Bluetooth/USB serial port/RS485 |
| Control mode |
Drag and drop teaching/Teaching pendant/API/JSON |
| Joint motion range |
J1 ±178°、J2 ±135°~178°、J3 ±145°~160°、J4 ±178°、J5 ±178°、J6 ±360° |
| Maximum speed |
J1-J2 180°/s、J3-J6 225°/s |
